Rebar Ring Bender - hydrualic rebar bending machine portable  steel bar bending

hydrualic rebar bending machine portable steel bar bending

รายละเอียดสินค้า : hydrualic rebar bending machine portable steel bar bending

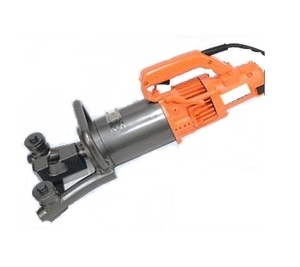

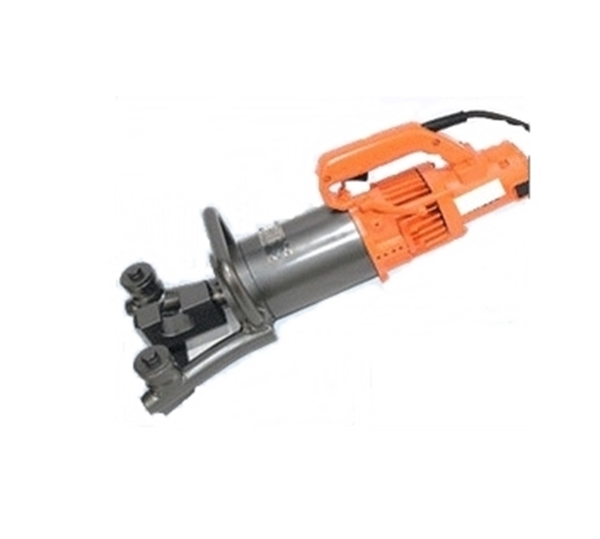

Rebar bender portable for sale 32 mm with hydrualic


The rebar Bender portable with adjustable positioning bolt,can be set to accurately bend any angle 0-180 degrees,preset angle for repeating the same angle bend.


1, the overall structure is simple, easy to operate and use. Good stability, high reliability, to ensure the quality of steel bending, improve work efficiency;
2. Suitable for the field work of the site where the ordinary bending machine is difficult to reach;
3) driven by high oil pressure system, large bending force, maximum bending 40MM steel bar;
4 no need to change the work head, can be bent steel, straightening work. Bending, straightening speed;
5 simple operation to reduce labor, product easy to move, the operation is simple and safe. WQ, WT Series Portable bending machine for steel bar bending machine is especially suitable for mobile work in workshop or on site.
6.Hydrualic rebar bending bending for off construction rebar, deformed rebar, round rebar and rebar rod ,etc. Widely used in construction engineering.
7. The rebar bending machine can bend upto 180 degree .
8. Head Rebar bending N.W only 25 kg,all portable rebar bender can operate with light weight.
9. There are no sparks ,no sediment, no smell. when bending work.
10 .Easy to operate .with manual book , people can work .



Model BB-32X
Max. rebar diameter 4-32  mm.
Bending Speed  5  sec.
Bending angle 0-180 degree
Weight 25  kg
Voltage 220  V.
Power input 1050 W
Dimension (mm) 540*325*210 mm
