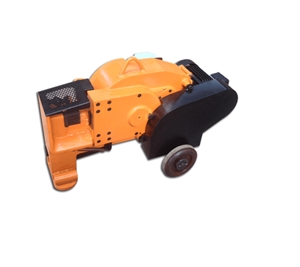

AMC-50 automatic rebar cutter flat/square/angle steel
รายละเอียดสินค้า : AMC-50 automatic rebar cutter flat/square/angle steel
Rebar Cutting Machine is applicable to ordinary carbon steel,and corrugated rebar.It can also cut angle steel and square steel provided with special blades.
rebar rod bar steel wire cutter machine construction equipment AMC-50 Steel bar cutting machine mainly be used for cutting carbon steel reforce bar, hot rolled bar(HRB series rebar), screw bar, square bar.
Rebar Cutting Machine is applicable to ordinary carbon steel, Hot-rolled steel and corrugated rebar in reinforced concrete. It can also cut flat steel, angle steel and square steel provided with special blades. Steel cutting machine has the following Features:
Speical specification
1.Adopt high quality copper wire motor, enhanced machine rack, compact structure, solid and reliable.
2.Good lubricating property, it could continuous work two months after adding 5-8kg gear oil.
3.Less functional loss compared wtih same type cutting machine, load power can be largely reduced
4. Low power loss. The gear uses rolling bearing, low frication, could save 1/3 power comparing with other rebar cutting machines
5. Quality core advantage
6.High hardness blade base and connection rod. Using high speed standard motor, high quality and steady performance, longer service lifel
7.All the gear shafts are produced by our own CNC processing center, high accuracy of size and excellent quality
8.All gears are extra thick and heavy, the whole machine is extra thick
We are offering Hydraulic Bar cutter to our clients.
Features : Smooth cutting motion ensuring a long life of the cutting blade.
Handy to operate and control the machine ensuring safety whilst in use.
It being a hydraulic system eliminates greasing and reduces the wearing and tearing working parts to a minimum.
Since there are no gears and clutches the machine is virtually maintenance free.
The machine incorporates an overload value, which is designed to operate in case of overload.
The machine runs on 3- phase power motor and single phase 2 phase and can be provided with a diesel engine as an alternative.
Electric Hydraulic Rebar Cutter is widely used for cutting construction rears, deformed bars, round steel bars, steel robs etc.It is easy to operate and safe for user as cutting without sparks, sediment and smell .Control by foot switch. Wheel for moving the machine

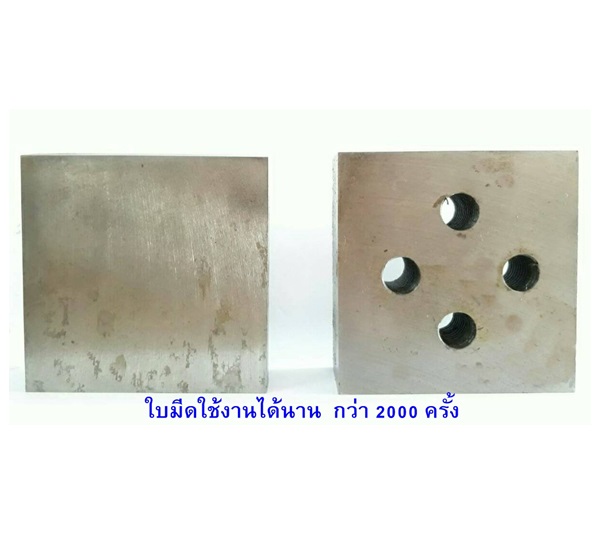

Product detail : product with blade (1 pair)
| Model | AMC-50 |
| Max. rebar diameter | 4-32 mm. (SD40) |
| Cutting Speed | 5 sec. |
| Motor | 5 HP |
| Voltage | 220 V , 380 V |
| Weight | 400 kg |
| Dimension (mm) | 750* 600* 680 mm. |
Package Type: wooden package or can be adjust for the machine's safety
container Packaging: Wrapped in plastic to protect from getting wet.
Packaging Detail:
1.Before packing ,the machine tools will be testing for 48 hours to ensure all the equipment
is 100% qualitiled.
2.Before loading,Stable, package,professional and skilled loader reduce damage of product
during trasport.
3.After loadingmour professional documentary staff will follow the order till the product departs from the port.
Delivery Detail : 30 DAys
